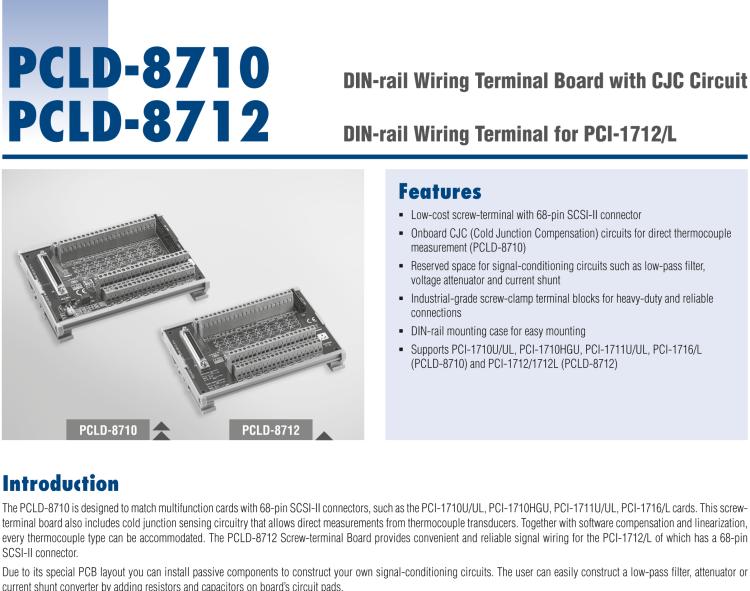

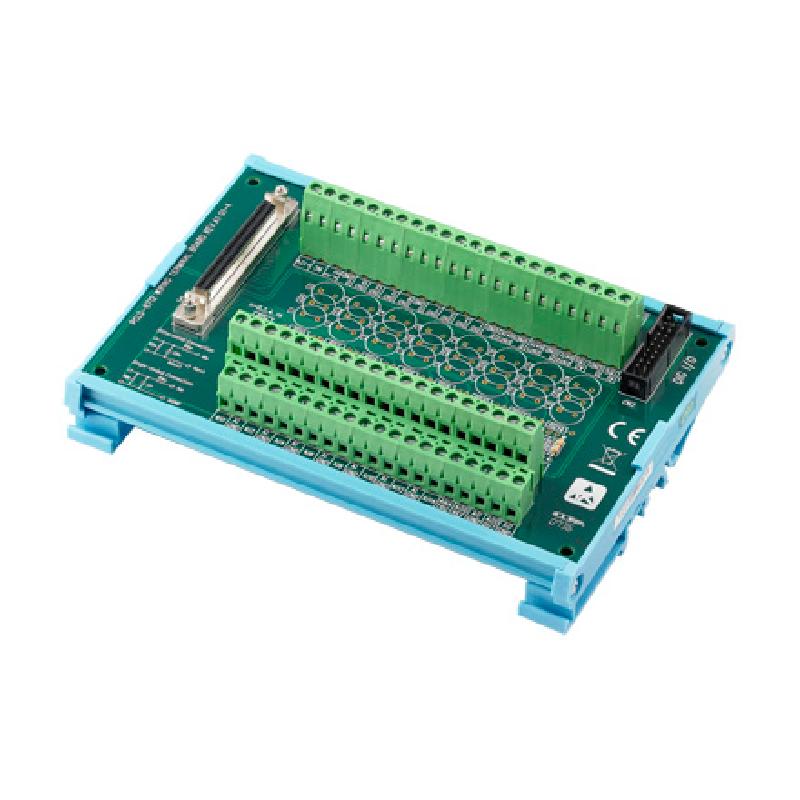

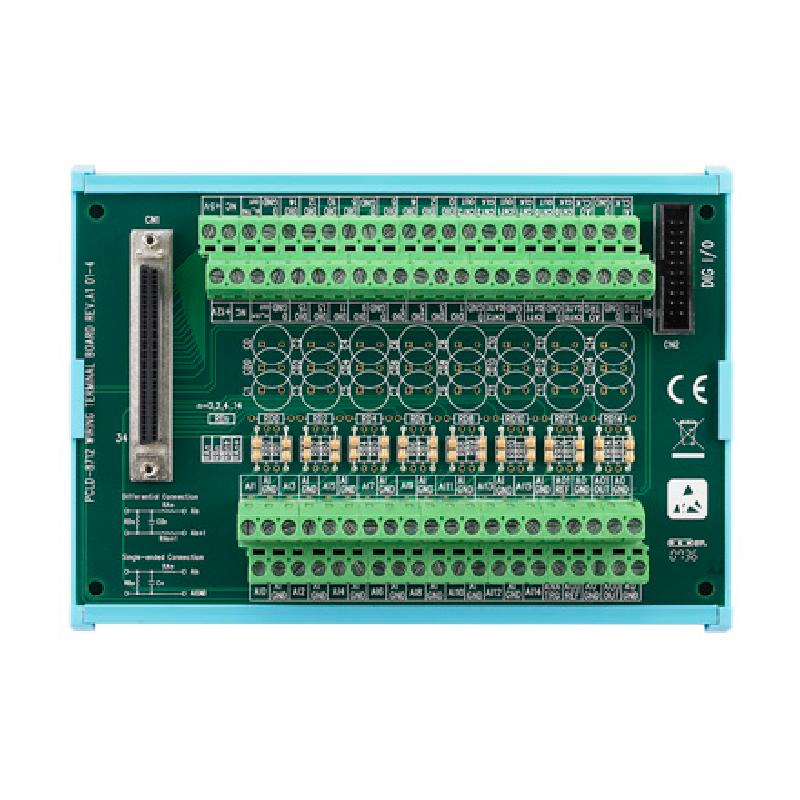

研華PCLD-8712 PCI-1712接線端子，DIN導軌支架

• PCI-1712/1732低成本螺絲端子板，支持68芯SCSI-II連接器

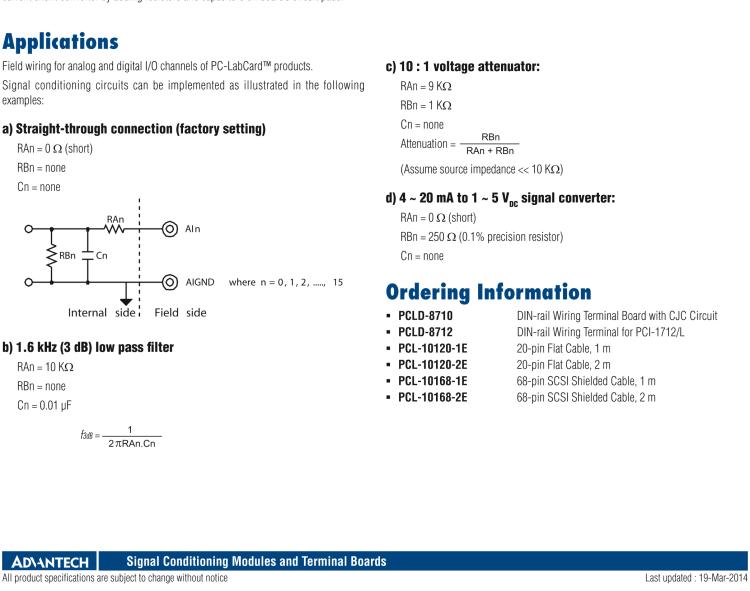

• 預留信號調節電路如低通濾波器、電壓衰減器等空間
• 工業級螺絲夾具接線端，適合繁重任務，連接可靠
• DIN導軌安裝箱以方便安裝
• 尺寸:169毫米（寬）x 112 毫米(長)x 51毫米(高) (6.7 " x 4.4 " x 2.0”英寸)
• The PCLD-8712 Screw-terminal Board provides convenient and reliable signal wiring for the PCI-1712/1732 of which has a 68-pin SCSIII connector. Due to its special PCB layout you can install passive components to construct your own signal-conditioning circuits. The user can easily construct a low-pass filter, attenuator or current shunt converter by adding resistors and capacitors on board’s circuit pads.
