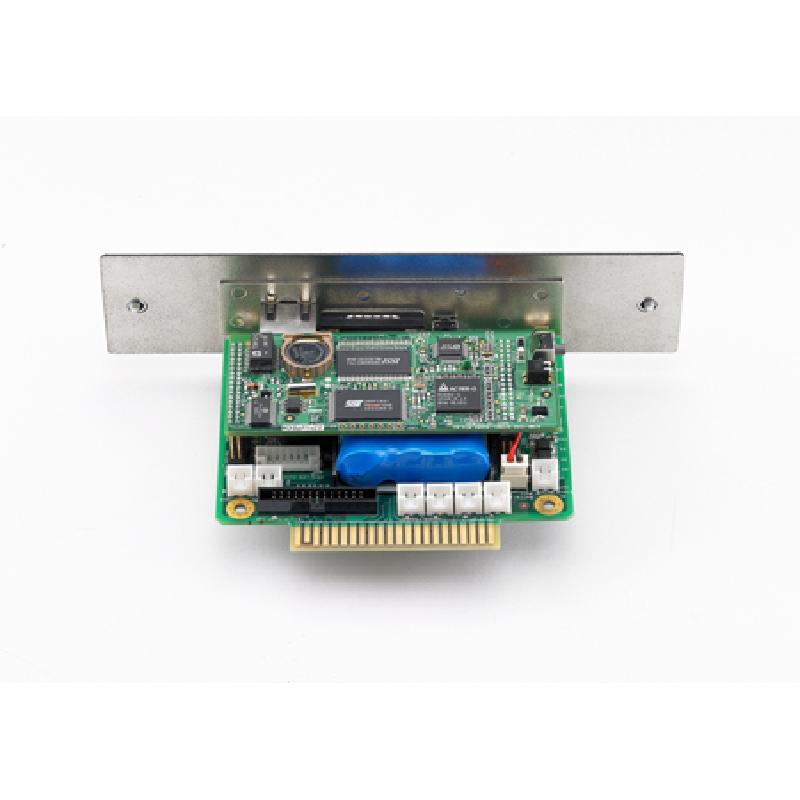

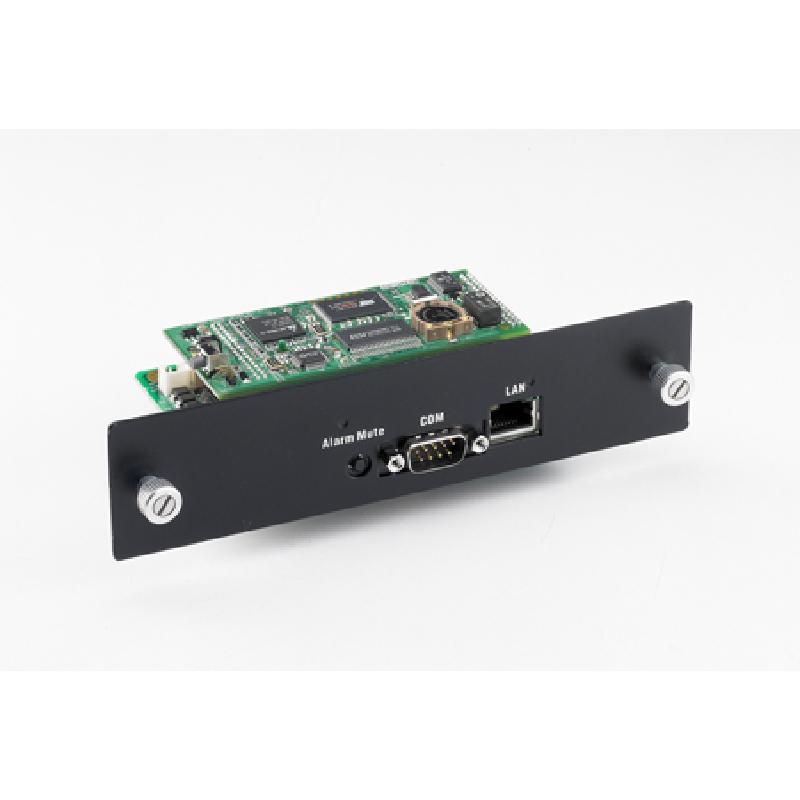

研華MIC-3927 CompactPCI? Intel?ligent Chassis Management Module (PICMG? 2.9)
- Compatible with PICMG 2.1, 2.16, and 2.9-compliant components
- Monitors via the Intel?ligent Platform Management Bus (IPMB) protocol
- Provides isolated IPMI signals for each slot for maximum security and reliability
- Out-of band management interface
- Hot swap support for IPMI based field replaceable components
- Alarm cut off push button on the front panel
- Standalone system monitoring: no driver needed, independent OS
- The MIC-3927 is a proprietary form factor Chassis Management Module (CMM) intended for use with PICMG* 2.1, 2.16, and 2.9-compliant systems (the CompactPCI* Hot Swap, Packet Switching Backplane, and System Management specifications respectively). The MIC-3927 plugs into a dedicated slot in compatible systems. It provides centralized management and alarm notification for system power supplies and fans as well as single board operation status. The CMM may be paired with a backup for high-availability applications.
