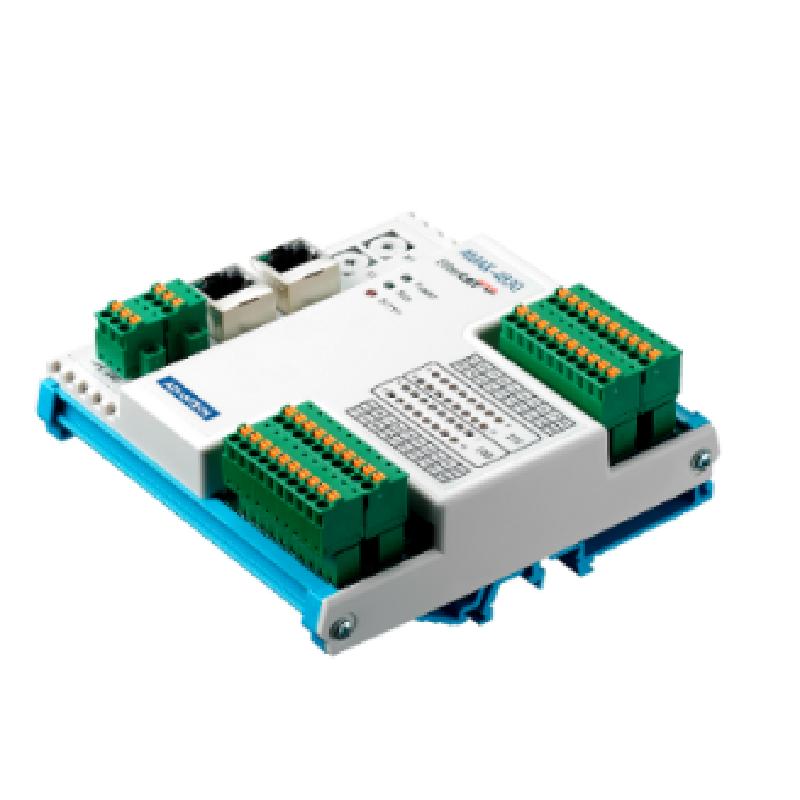

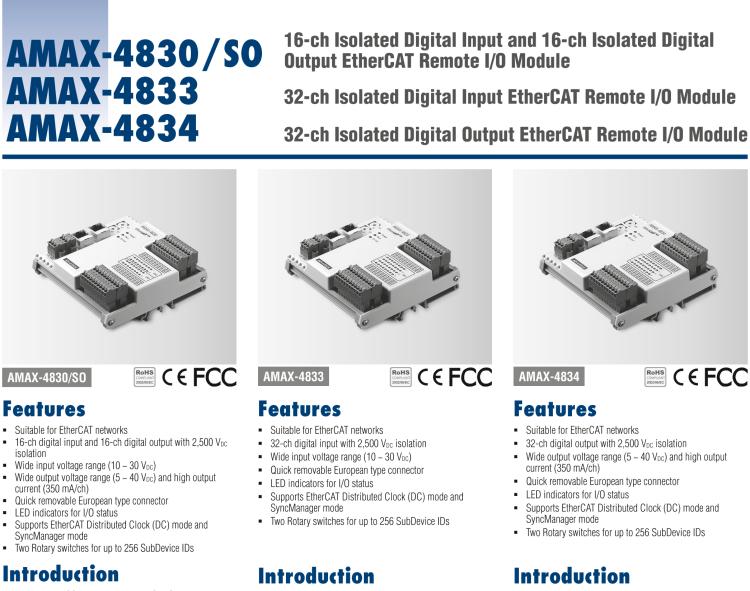

研華AMAX-4830 16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module

• Suitable for EtherCAT networks
• 16-ch digital input and 16-ch digital output with 2,500 VDC isolation
• Wide input voltage range (10 ~ 30 VDC)
• Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
• Quick removable European type connector
• LED indicators for I/O status
• Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
• Two rotary switches for up to 256 SubDevice IDs
• The AMAX-4830 is an industrial EtherCAT SubDevice module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet.
